Product Description
The 3/4″ Male x Female Live Swivel for wands is designed to provide smooth, flexible movement and prevent hose twisting during spraying. Built from durable materials, it ensures steady flow and long-lasting performance under tough job conditions. Easy to install and reliable, this swivel helps improve control and efficiency while extending the life of your hose and wand setup.

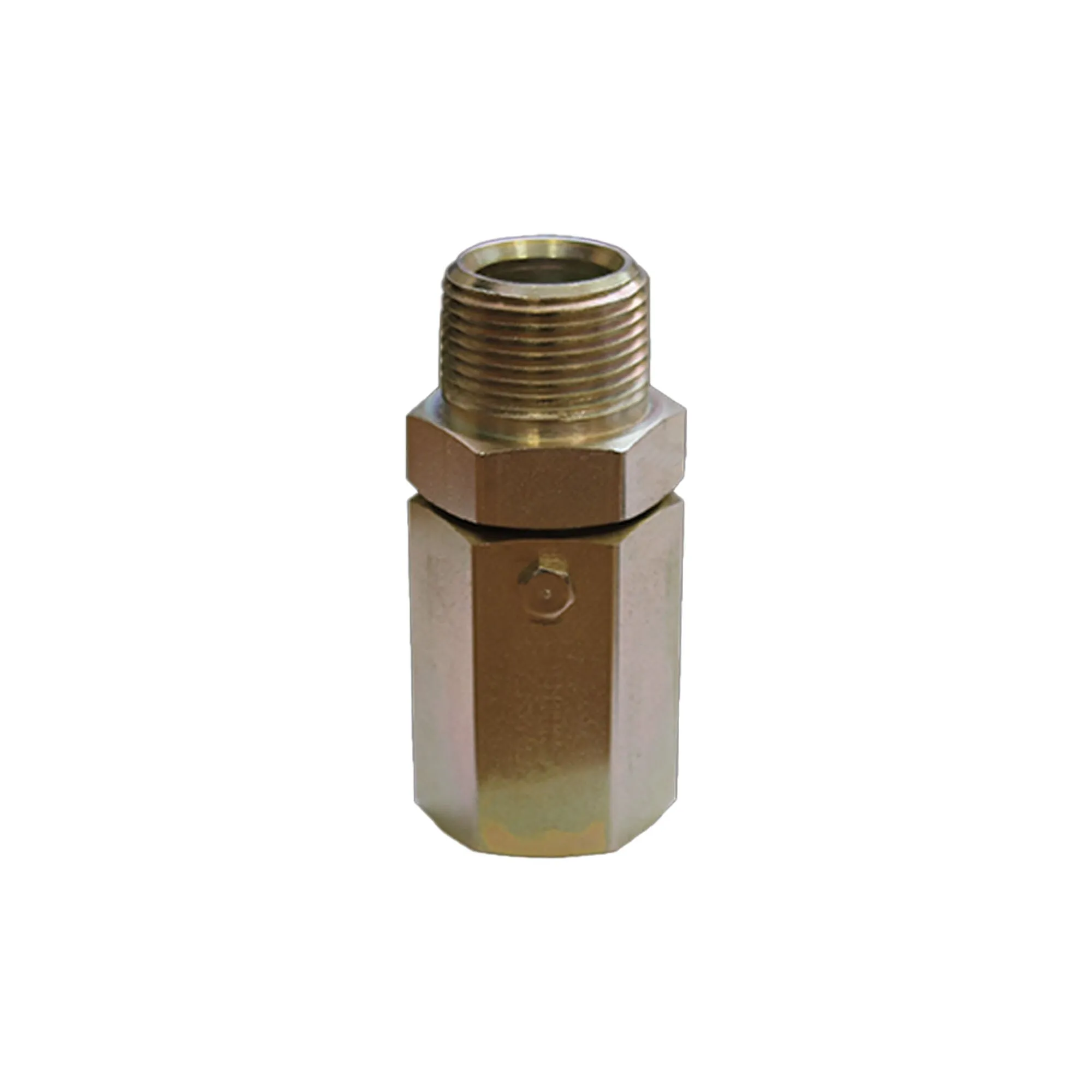

3/4″ Male x Female Live Swivel (wand) – Barrel Connector 3/4″” Female Pipe
Stem Connector 3/4″” Female Pipe – Temperature rating up to 250°F, max psi 3000
Barrel Connector – PF-Female Pipe
BC Size – -12 (3/4″”)
Stem Connector – P-Male Pipe
SC Size – -12 (3/4″”)
T1 – 3/4-14 / NPTF
T2 – 3/4-14 / NPTF
A – 3.00 / 76.2 mm
B – 1.77 / 45.0 mm
C Hex (* = Round) – 1.25 / 31.8 mm
D Hex (* = Round) – 1.25 / 31.8 mm
Vacuum – 29.5 in./Hg – 1.0 bar
WT/LBS – 0.61 – 0.28 kg
Temp Range – -30°F to 250°F / -34°C to 121°C
Max W.P. – 3,000 PSI / 20.7 MPa
