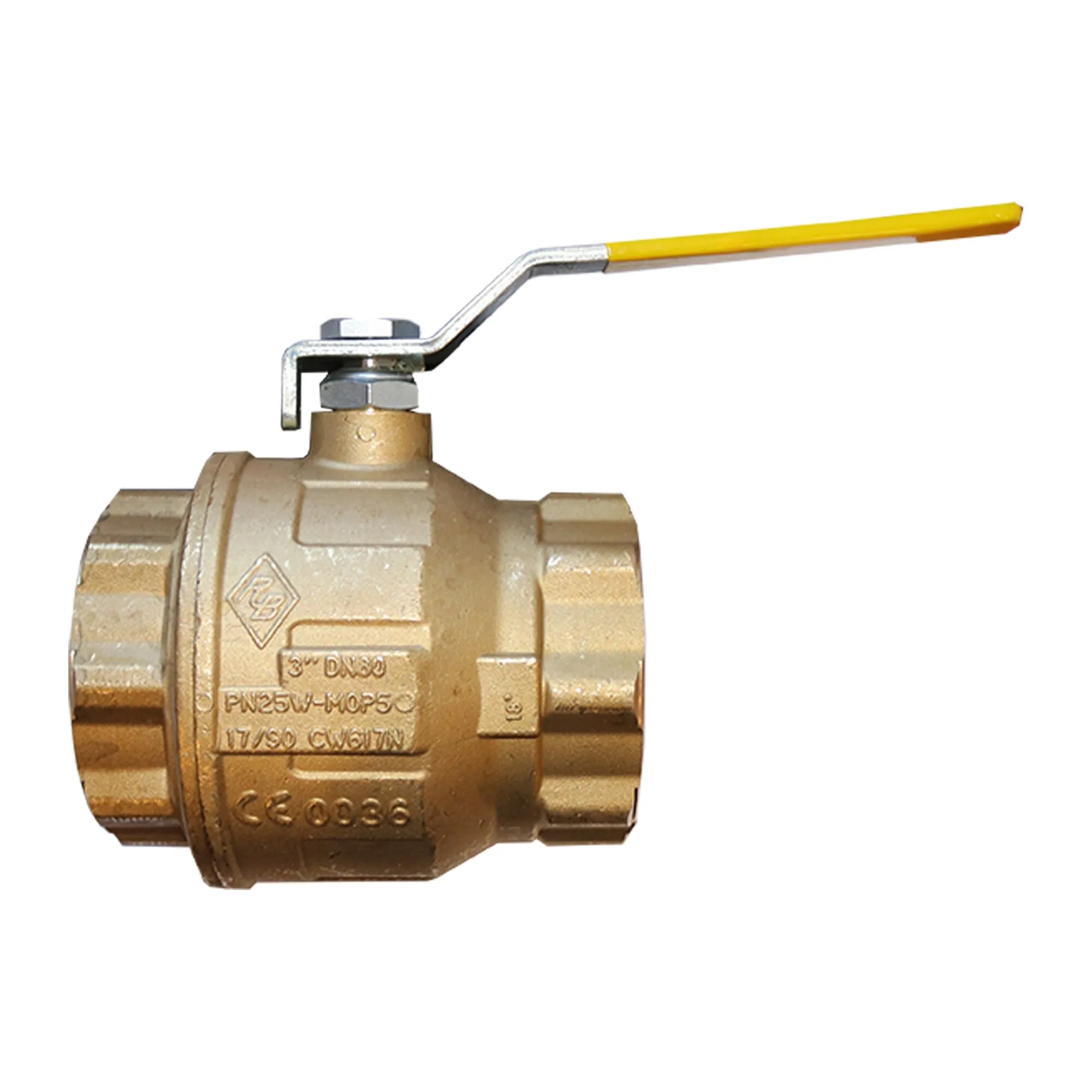

3″ Brass Full Port Ball Valve

Brass ball valve, FNPT threaded, full port sizes 1/4” to 4”.

• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to +366°F.
• Blow out proof stem, chrome plated brass ball.
• P.T.F.E seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Valve to be used in fully open or fully closed position.
• ANSI B1.20.1 connections

Item
Ball Valve
Body Material
Brass
Port
Full
Connection Type
Threaded (FNPT x FNPT)
Size
3″
Max. Pressure
600 WOG, 150 WSP
Ball Material
Chrome Plated Brass
Temperature Range
366 F
Handle Material
Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
Brass
