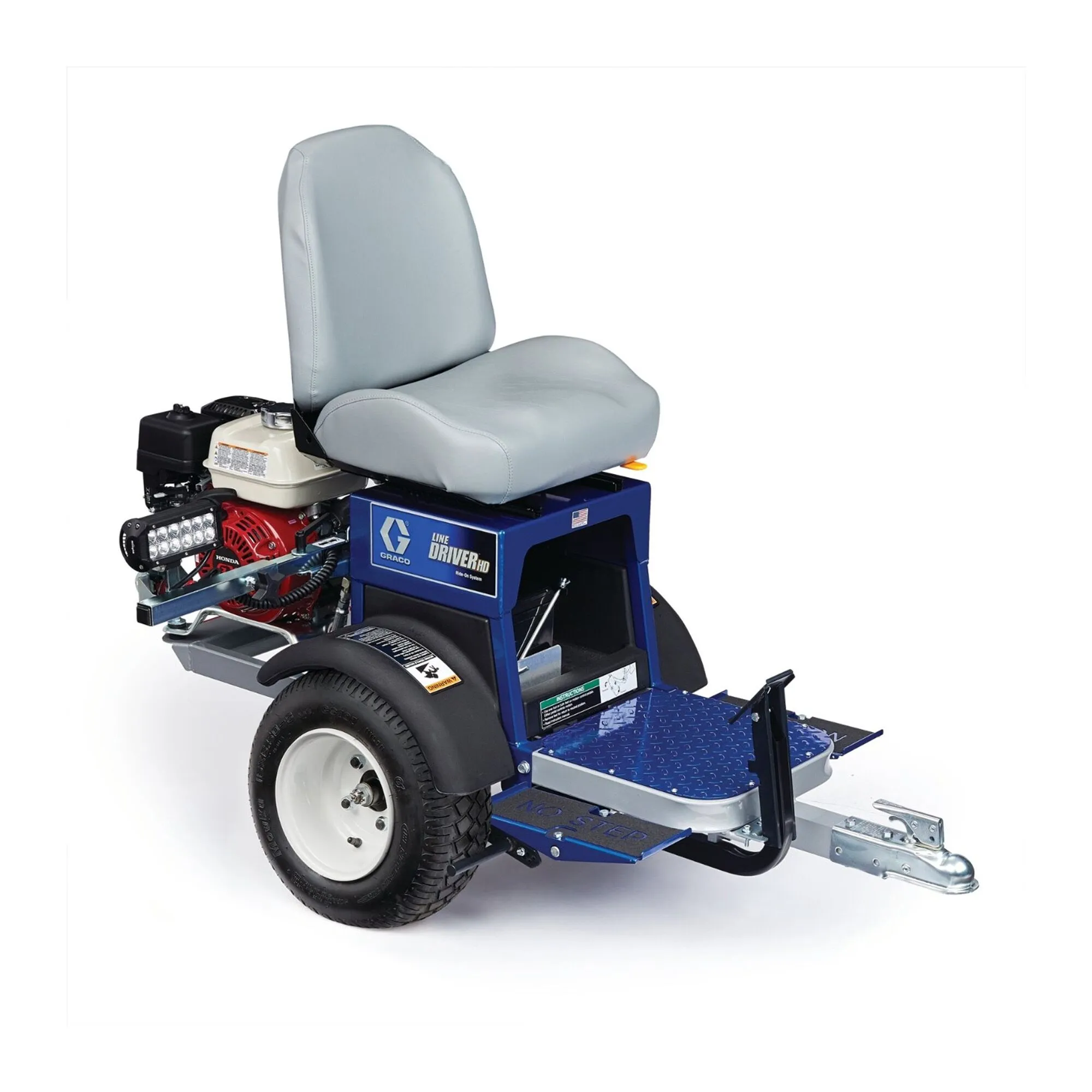

Graco LineDriver with 160cc Honda GX

“Transforms your striper into a ride-on push and pull, hydrostatic driver. It doubles your production rate and improves line quality while reducing operator’s fatigue.
Benefits
Finish your jobs in half the time.
The power of the LineDriver enables carrying extra paint on board.
The LineDriver makes it easy to maintain the correct speed to reproduce exactly the same thickness throughout the job.
Having the same force on each wheel guarantees a straighter line.
Only change the oil to maintain the system.
LineDriver
Hydraulic Pressure – 186 bar
Hydraulic System Capacity – 1.9 l
Engine – Honda GX 160 cc
Engine Generator Output – 70W
Dimensions
Weight – 120 kg
Height – 104 cm
Width – 74 cm
Length – 147 cm
Sound Levels
Sound Pressure – 94 — 99 dB(A) measured at 1 m/ISO 3744
Sound Power – 79 — 83 dB(A) measured at 1 m/ ISO 3744
Vibration Level
Left Hand (Vibration measured per ISO 5349 based on 8 hour daily esposure A(8) LineDriver and LineDriver HD: Vibration at seat and pedals (EN1032) < 0.5 sq m/s) – 0.3 sq m/s
Right Hand (Vibration measured per ISO 5349 based on 8 hour daily esposure A(8) LineDriver and LineDriver HD: Vibration at seat and pedals (EN1032) < 0.5 sq m/s) – 0.2 sq m/s”

*Unit ships freight
