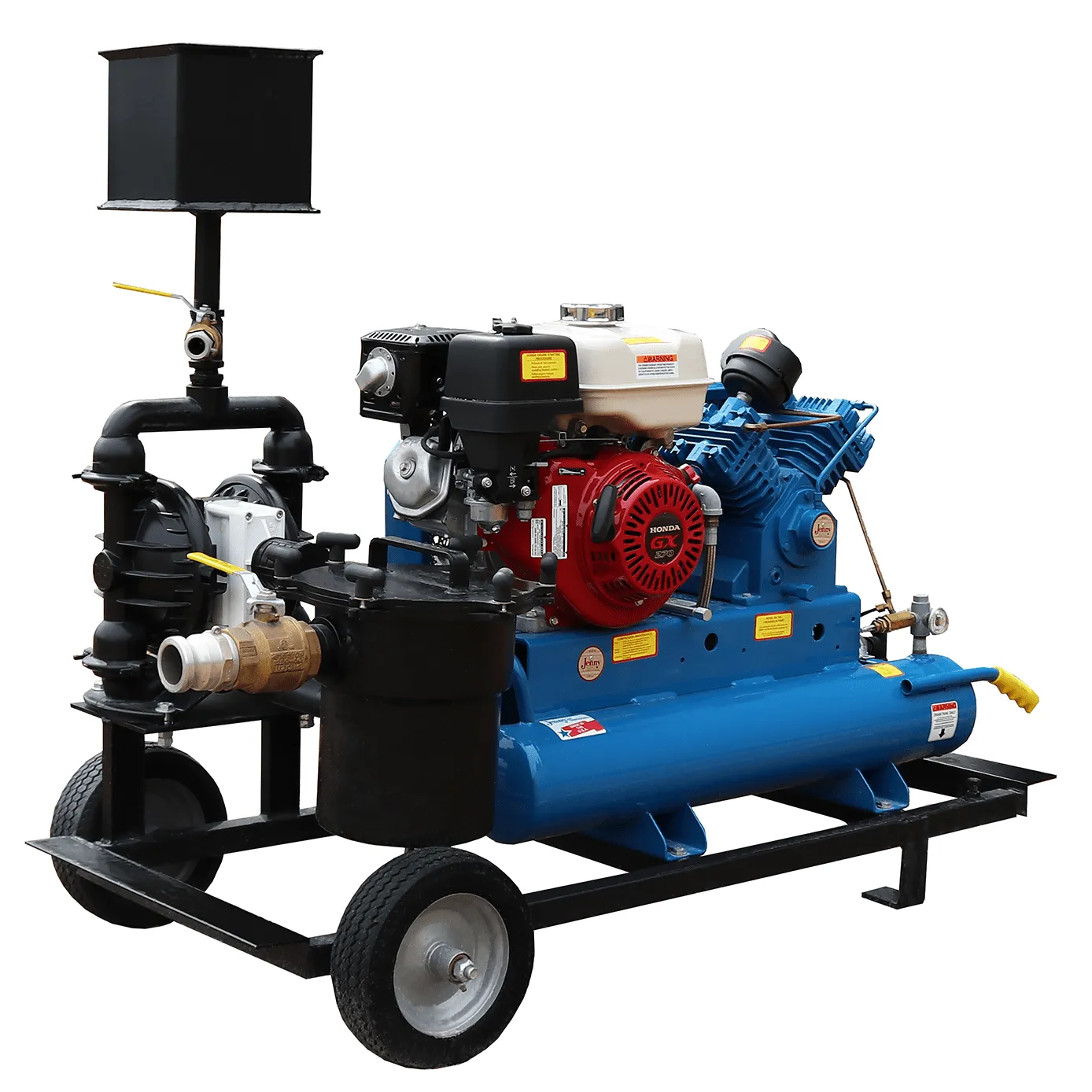

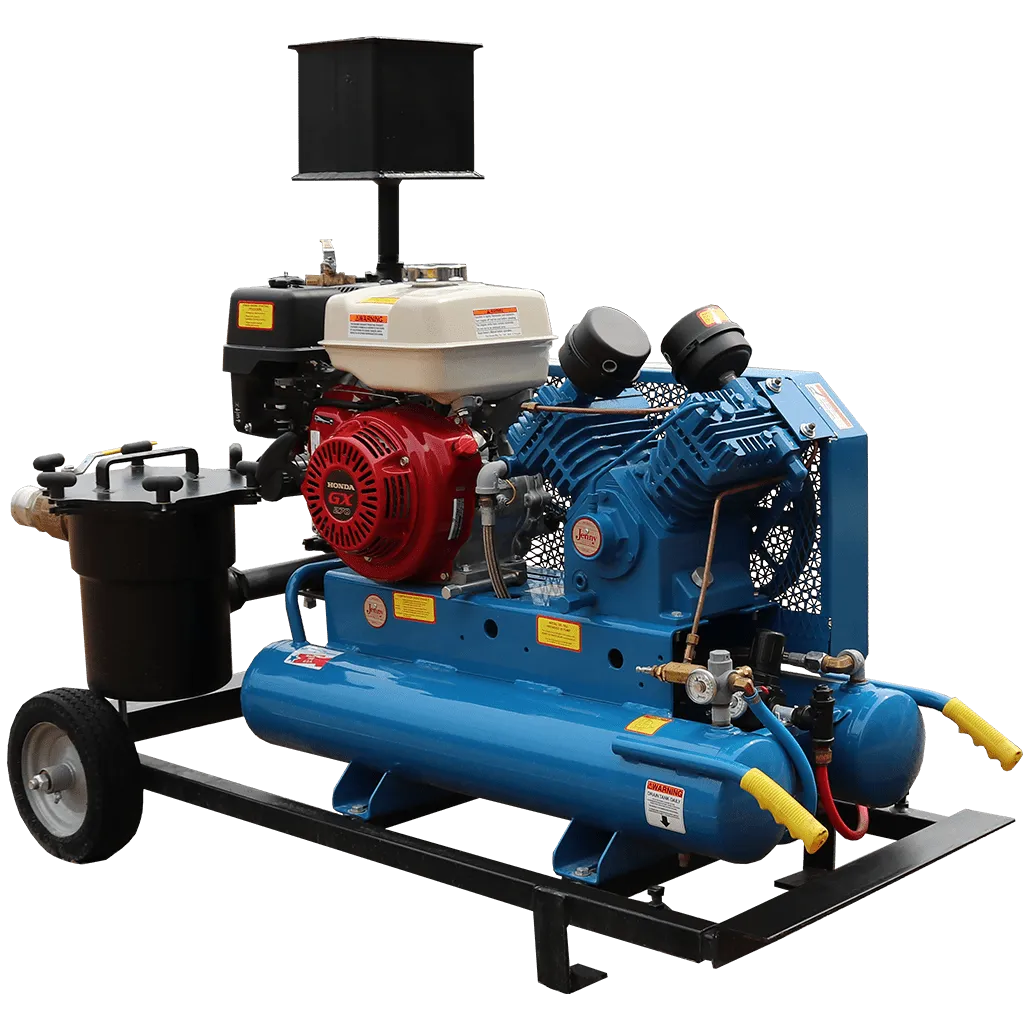

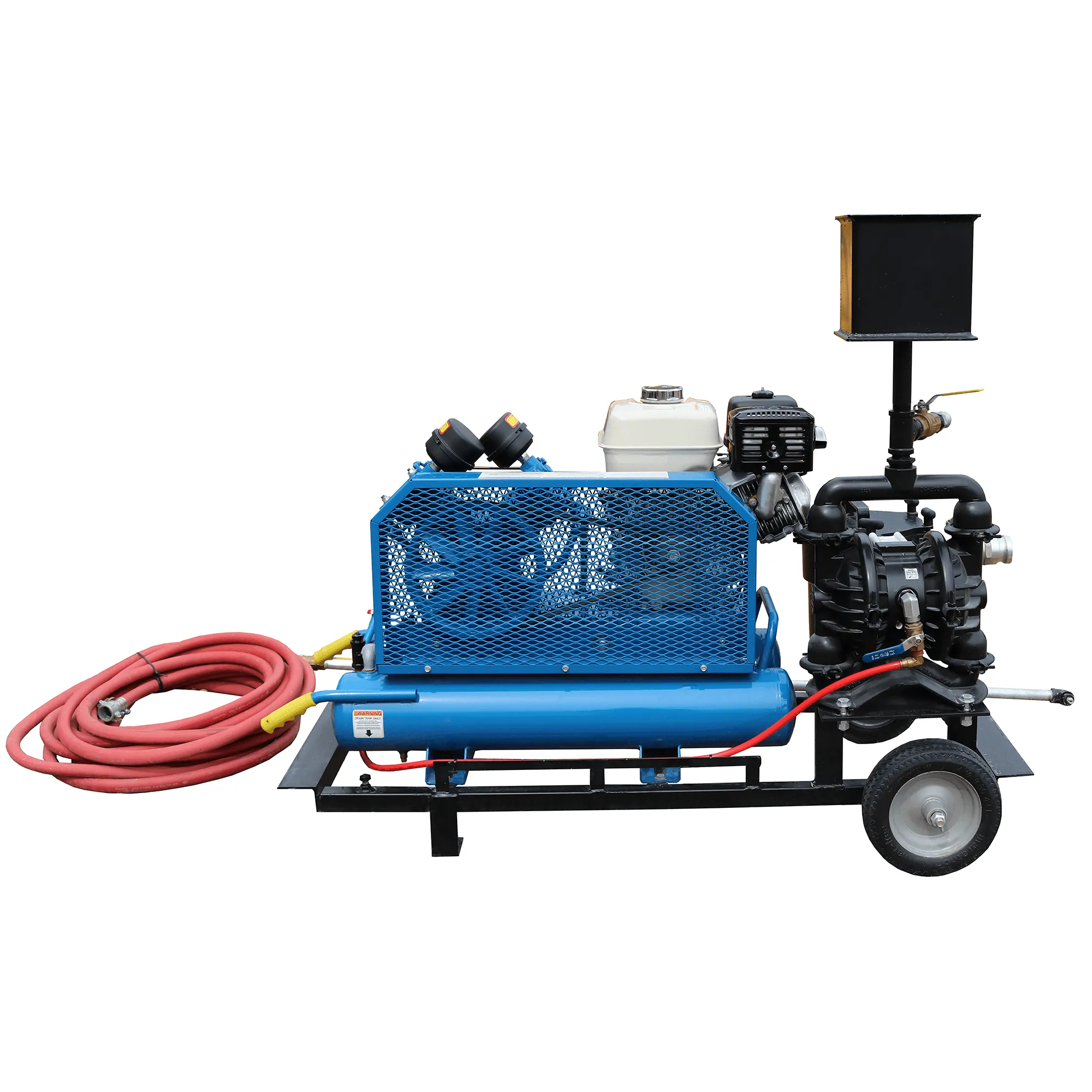

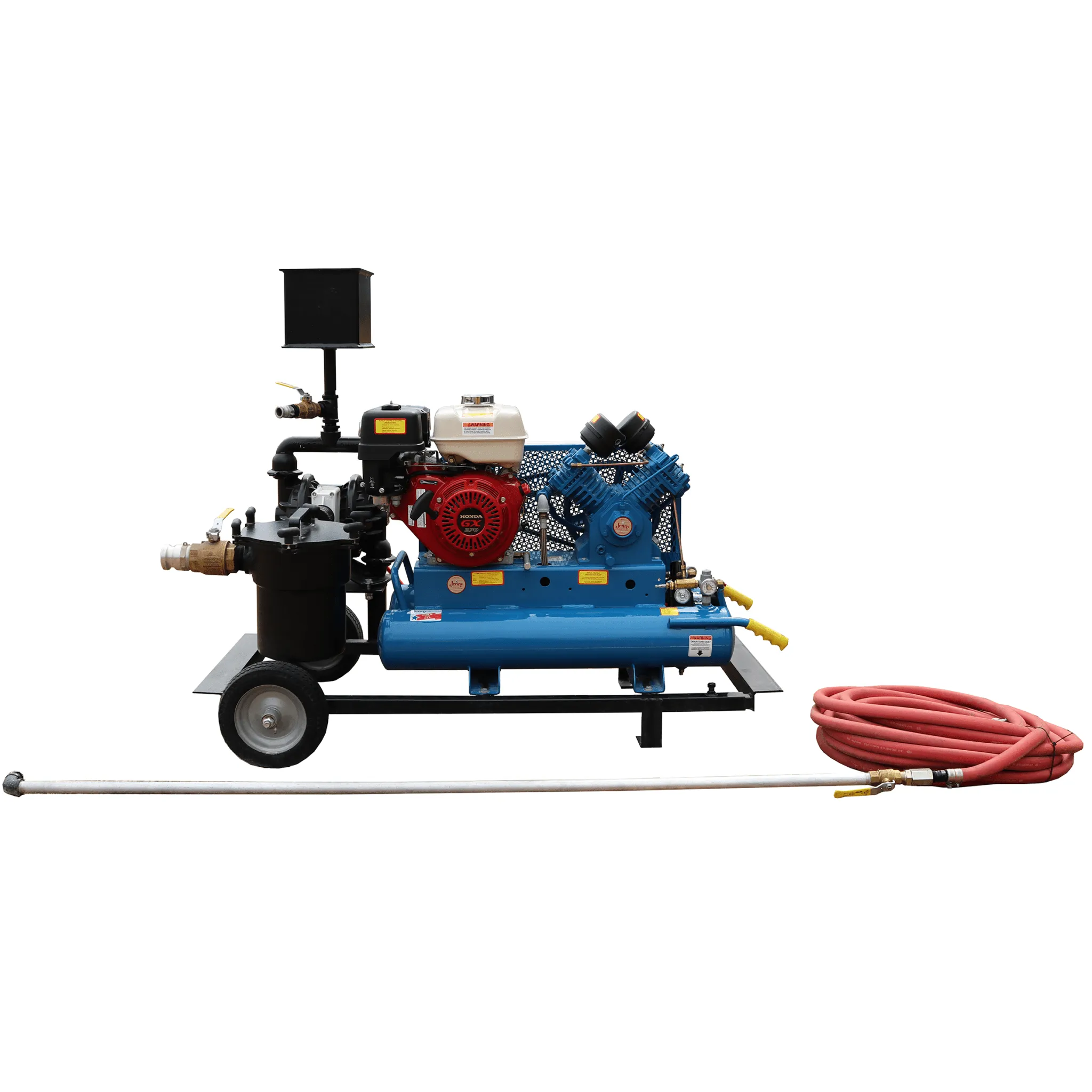

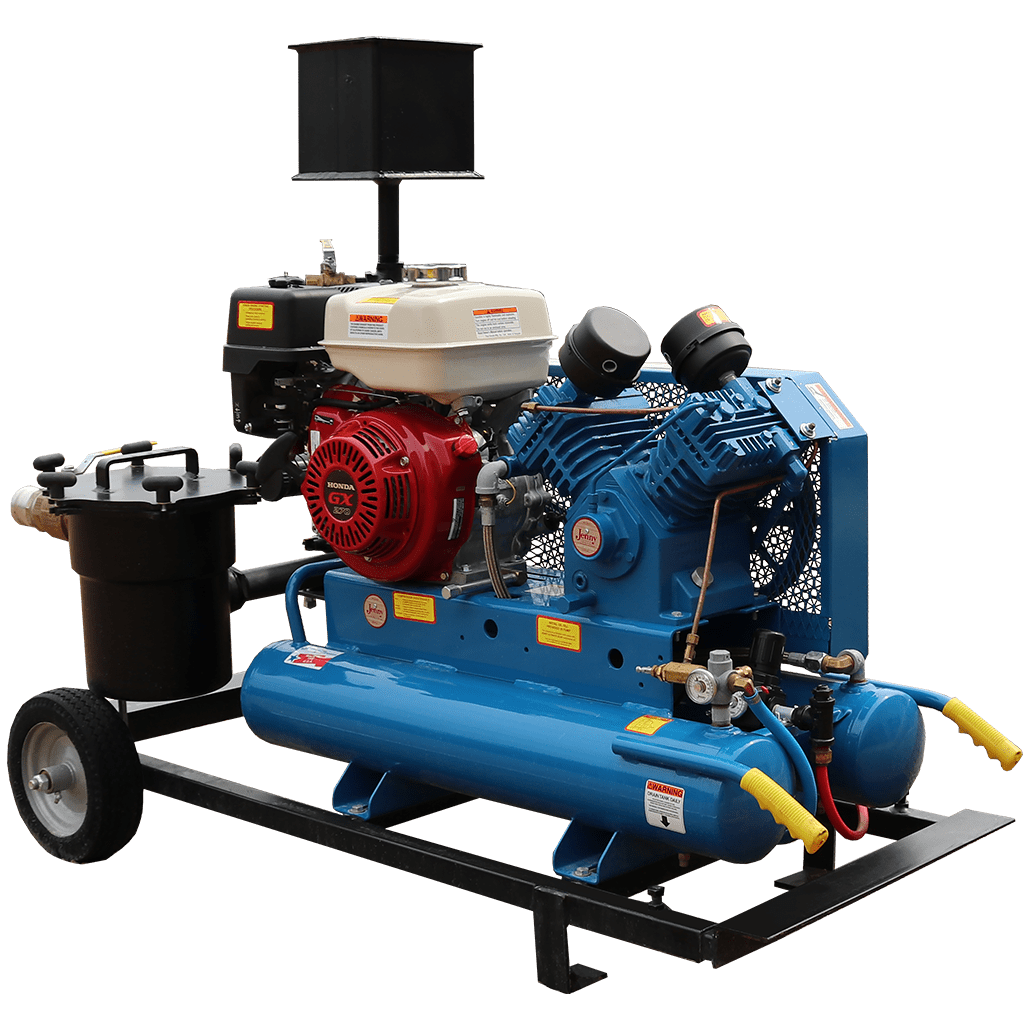

Portable 9 Spray System

Product Description

Ready to hook up to a tank or barrel to spray sealer or take out the spray tip and just pump material out onto the ground. No more lugging buckets to get sealer where you want it!
8-gallon air compressor with manual start gasoline motor
51”- 68” adjustable frame allows unit to fit between bed rails of almost any pickup
Wheels enable unit to be moved around for ground use
1 1/2” Wilden air-operated, dual-diaphragm pump that can handle sand
50’ of 3/4” 300 psi Goodyear hand hose with 6 1/2’ aluminum spray wand (100’ of hose optional – as shown)
Air regulator and gauge
3-gallon filter pot
Surge bottle

Weight	470 lbs
Dimensions	64 × 32.5 × 44 in

Upgrade to 100′ of hand hose
Connections kit that includes: 5′ of 2″ suction hose, two 2″ female coupler hose shanks and four 2″ hose clamps
Heavy duty connections kit that include: 5′ of 2″ discharge hose, two 2″ female coupler hose shanks and two 2″ double bolt hose clamps
