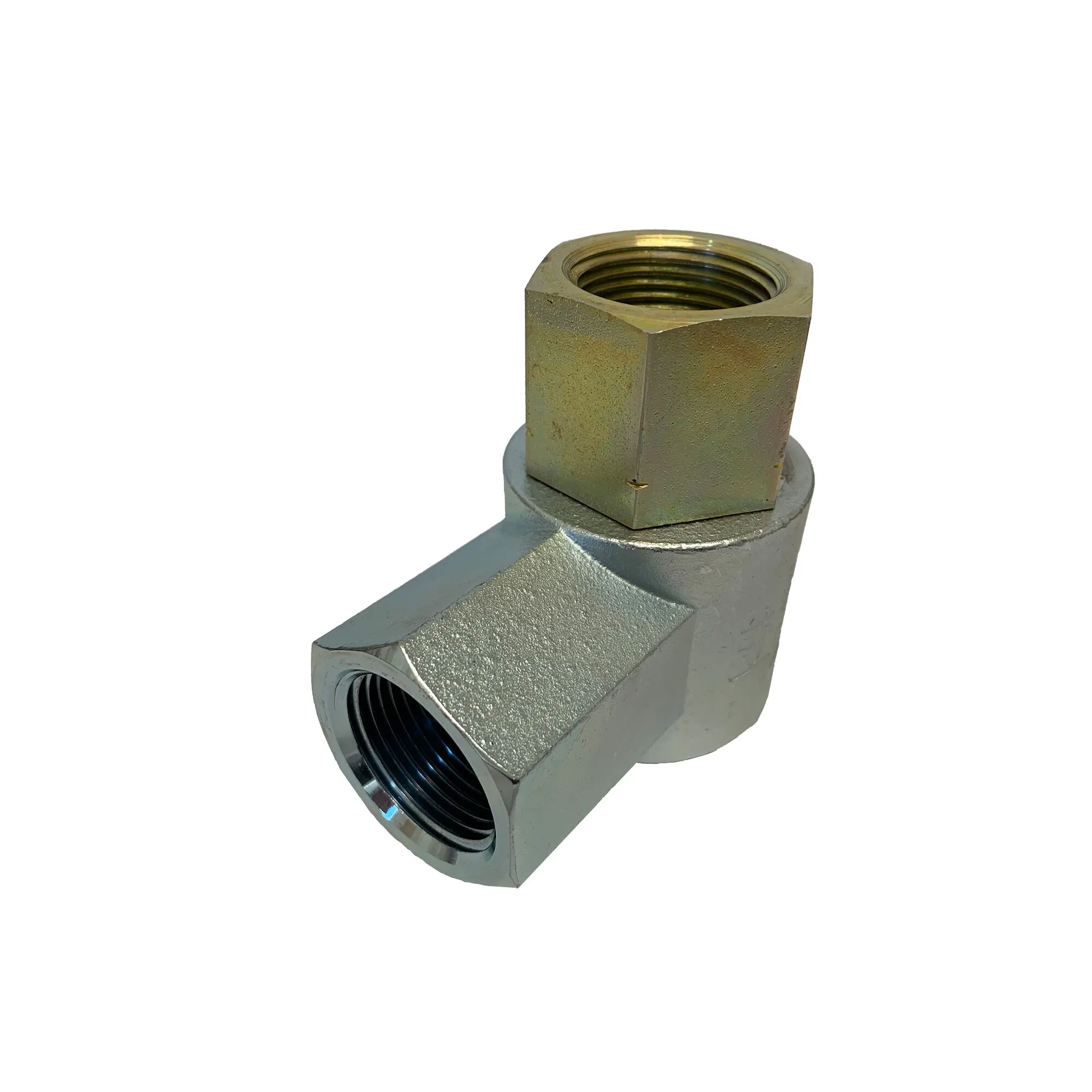

1″ 90° Live Swivel for Hose Reel

Barrel Connector PF-Female Pipe
BC Size -16 (1″”)
Stem Connector PF-Female Pipe
SC Size -16 (1″”)
T1 1-11 1/2
T2 1-11 1/2
A 3.4 – 86.4 mm
B 2.26 – 57.4 mm
C 3.54 – 89.9mm
D 2.48 – 63.0 mm
H Hex 1.63 – 41.4 mm
J Hex (* = Round) 1.63 – 41.4 mm
K Dia. 2.13 – 54.1mm
Vacuum 29.5 in./Hg – 1.0 bar
WT/LBS 2.46 – 1.12kg
