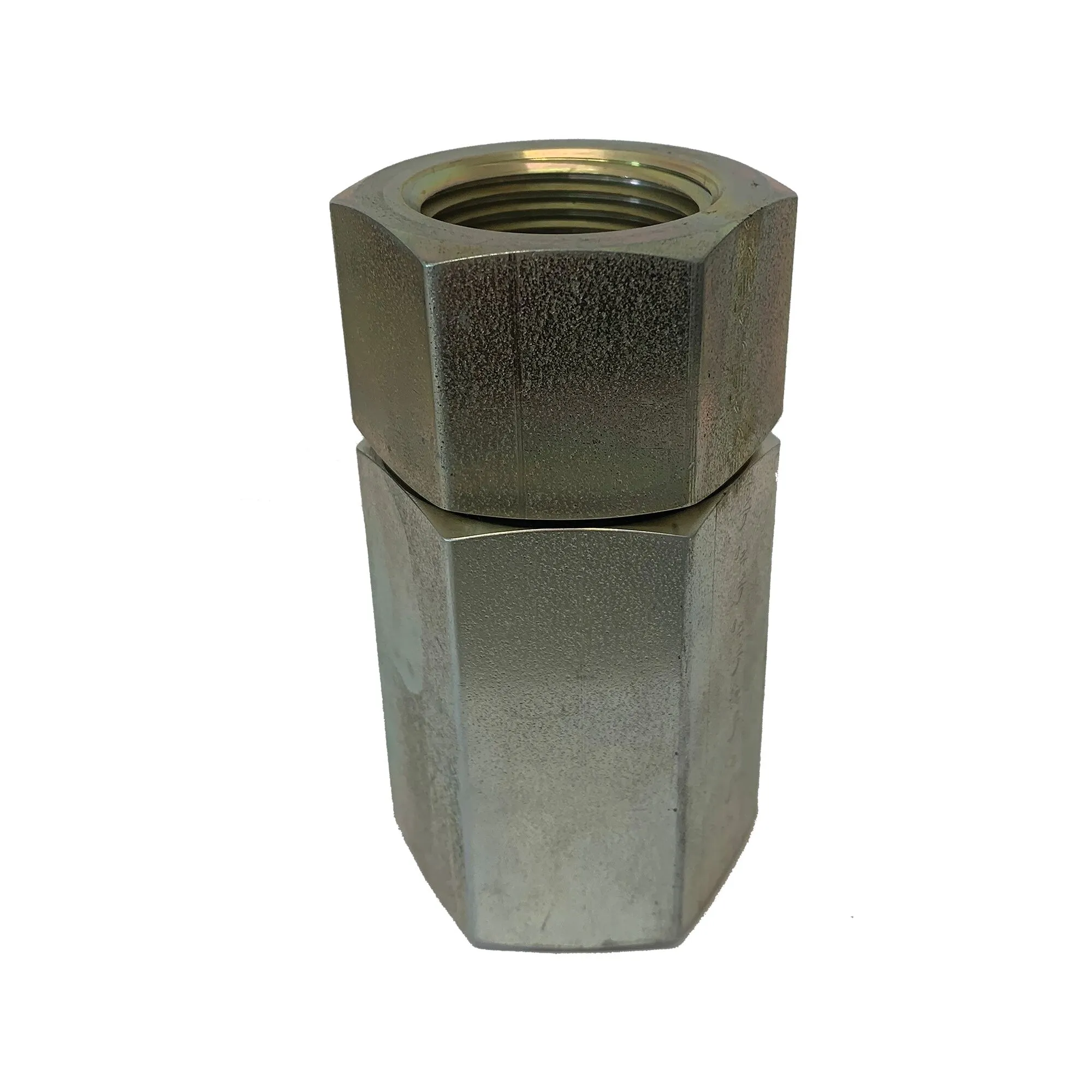

1″ Straight Hose Reel Joint

Barrel Connector 1″” Female Pipe
Stem Connector 1″” Female Pipe
T1 1-11 1/2 – NPTF
T2 1-11 1/2 – NPTF
A 3.56 – 90.4 mm
B 2.37 – 60.2 mm
C Hex – (* = Round) 1.75 – 44.5 mm
D Hex – (* = Round) 1.75 – 44.5 mm
Vacuum 29.5 in./Hg – 1.0 bar
WT/LBS 1.5 – 0.68 kg
Temp Range -30°F to 250°F / -34°C to 121°C
Max W.P. 3,000 PSI – 20.7 MPa
